API Documentation

Access Refly open capabilities via API, such as running workflows and fetching status/output.

Base URL: /v1

Overview

Refly API provides RESTful endpoints for programmatically running workflows, uploading files, querying execution status, and more. All API requests require authentication via API Key.

Authentication

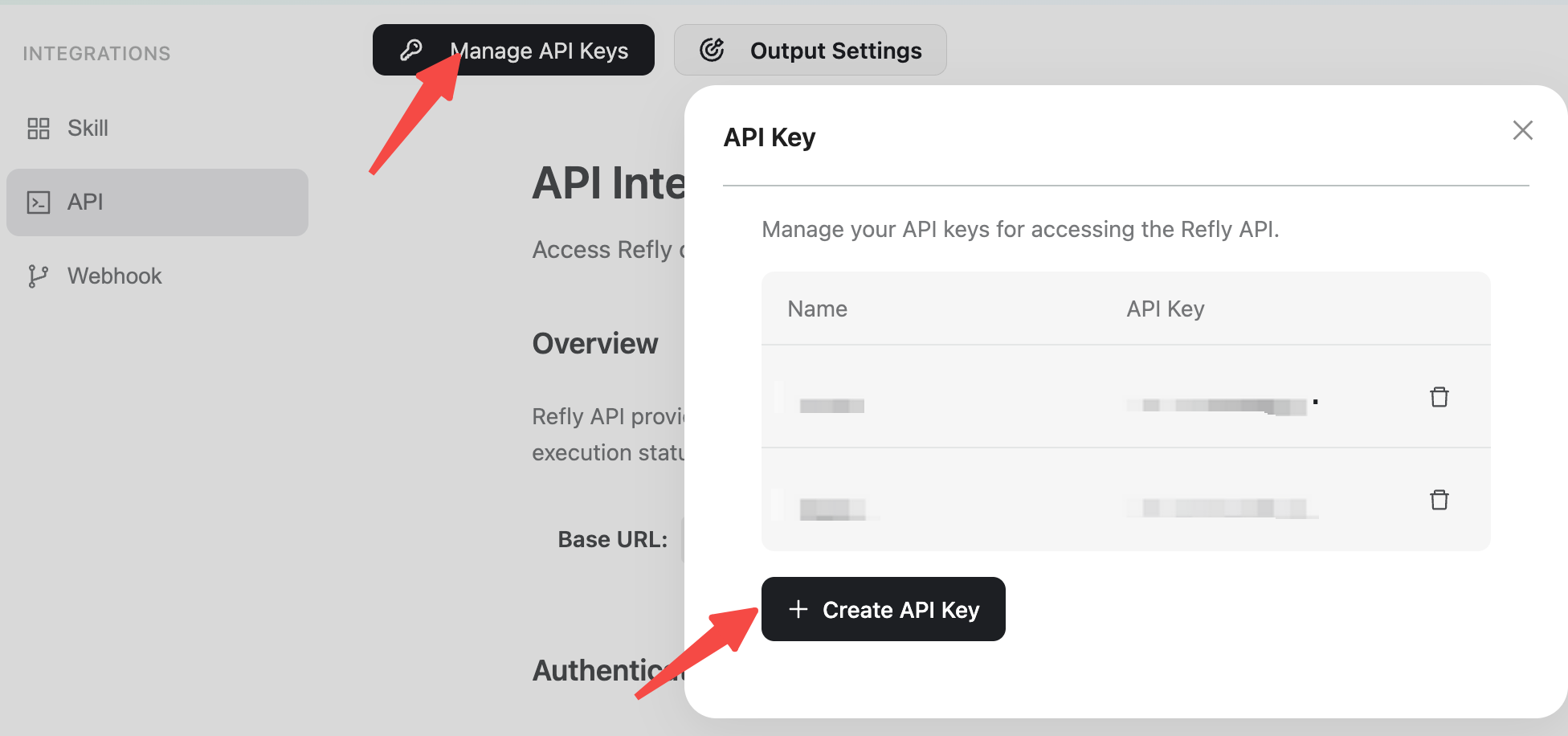

All API requests require an API Key in the HTTP header for authentication.\n\nHow to get an API Key:\n1. Go to the Integration page in Refly workspace\n2. Click the "API Key" tab\n3. Create a new API Key and keep it secure

Authorization: Bearer YOUR_API_KEY

Endpoints

The following endpoints are available for integration.

Workflow

POST /openapi/workflow/{canvasId}/run

Run workflow

Execute a workflow via authenticated API call. Unlike webhook triggers, this endpoint requires API Key authentication and returns an execution ID that can be used to track workflow status.

Parameters

Name	In	Type	Required	Description
canvasId	path	string	Yes	Canvas/Workflow ID (from the canvas URL in the browser address bar)

Request Body

Wrap workflow variables under the variables field.

Each key in variables is a workflow variable name. Values can be strings, numbers, booleans, objects, or arrays.

For file variables, pass fileKey (or an array of fileKey) returned by /openapi/files/upload.

For backward compatibility, you may also pass variables as top-level fields, but variables is recommended.

Request Body Fields

Name	Type	Required	Description
variables	object	No	Workflow variables as key-value pairs. Each key is a workflow variable name. Values can be strings, numbers, booleans, objects, or arrays. For file variables, pass fileKey (or an array of fileKey) returned by /openapi/files/upload.

Request Body Example

{}

Responses

Status	Description
200	Workflow execution started successfully
400	Invalid request parameters
401	Unauthorized - invalid or missing API key
403	Workflow API is disabled
404	Workflow not found

Response Fields (200)

Name	Type	Required	Description
success	boolean	Yes	Whether the operation was successful
errCode	string	No	Error code
errMsg	string	No	Error message
traceId	string	No	Trace ID
stack	string	No	Error stack (only returned in development environment)
data	object	No	-
data.executionId	string	No	Workflow execution ID
data.status	enum(init | executing | finish | failed)	No	-

POST /openapi/workflow/{executionId}/abort

Abort workflow execution

Abort a running workflow execution via authenticated API call. Requires API Key authentication.

Parameters

Name	In	Type	Required	Description
executionId	path	string	Yes	Workflow execution ID (from run response or status endpoint)

Responses

Status	Description
200	Workflow abort request accepted
401	Unauthorized - invalid or missing API key
404	Workflow execution not found

Response Fields (200)

Name	Type	Required	Description
success	boolean	Yes	Whether the operation was successful
errCode	string	No	Error code
errMsg	string	No	Error message
traceId	string	No	Trace ID
stack	string	No	Error stack (only returned in development environment)

GET /openapi/workflow/{executionId}/output

Get workflow execution output

Get workflow execution output (output nodes and drive files) via authenticated API call. Requires API Key authentication. Messages may include partial content while nodes are executing or failed. Files are returned only after nodes finish.

Parameters

Name	In	Type	Required	Description
executionId	path	string	Yes	Workflow execution ID

Responses

Status	Description
200	Workflow execution output retrieved successfully
401	Unauthorized - invalid or missing API key
404	Workflow execution not found

Response Fields (200)

Name	Type	Required	Description
success	boolean	Yes	Whether the operation was successful
errCode	string	No	Error code
errMsg	string	No	Error message
traceId	string	No	Trace ID
stack	string	No	Error stack (only returned in development environment)
data	object	No	-
data.output	object[]	No	Output node results
data.output[].nodeId	string	Yes	Node ID
data.output[].title	string	No	Node title
data.output[].status	enum(init | waiting | executing | finish | failed)	No	Action status
data.output[].errorMessage	string	No	Node error message
data.output[].startTime	string(date-time)	No	Node start time
data.output[].endTime	string(date-time)	No	Node end time
data.output[].messages	object[]	No	Output messages
data.output[].messages[].messageId	string	Yes	Message ID
data.output[].messages[].content	string	No	Message content
data.output[].messages[].reasoningContent	string	No	Message reasoning content
data.output[].messages[].type	enum(ai | tool)	Yes	Action message type
data.files	object[]	No	Output files
data.files[].name	string	Yes	File name
data.files[].type	string	Yes	File type
data.files[].size	number	No	File size
data.files[].nodeId	string	No	Node ID that produced the file
data.files[].url	string	No	File access URL

GET /openapi/workflow/{executionId}/status

Get workflow execution status

Get workflow execution status via authenticated API call. Requires API Key authentication.

Parameters

Name	In	Type	Required	Description
executionId	path	string	Yes	Workflow execution ID

Responses

Status	Description
200	Workflow execution status retrieved successfully
401	Unauthorized - invalid or missing API key
404	Workflow execution not found

Response Fields (200)

Name	Type	Required	Description
success	boolean	Yes	Whether the operation was successful
errCode	string	No	Error code
errMsg	string	No	Error message
traceId	string	No	Trace ID
stack	string	No	Error stack (only returned in development environment)
data	object	No	-
data.executionId	string	No	Workflow execution ID
data.status	enum(init | executing | finish | failed)	No	-
data.nodeExecutions	object[]	No	Node execution status list
data.nodeExecutions[].nodeId	string	Yes	Node ID
data.nodeExecutions[].status	enum(init | waiting | executing | finish | failed)	No	Action status
data.nodeExecutions[].title	string	No	Node title
data.nodeExecutions[].errorMessage	string	No	Node error message
data.createdAt	string(date-time)	No	Created time

GET /openapi/workflows

Search workflows

Search workflows accessible by this API key.

Parameters

Name	In	Type	Required	Description
keyword	query	string	No	Keyword to search in workflow titles
order	query	string	No	Sort order
page	query	number	No	Page number (1-based)
pageSize	query	number	No	Number of items per page

Responses

Status	Description
200	Workflow list retrieved successfully
401	Unauthorized - invalid or missing API key

Response Fields (200)

Name	Type	Required	Description
success	boolean	Yes	Whether the operation was successful
errCode	string	No	Error code
errMsg	string	No	Error message
traceId	string	No	Trace ID
stack	string	No	Error stack (only returned in development environment)
data	object[]	No	Workflow search results
data[].canvasId	string	Yes	Canvas/Workflow ID
data[].title	string	Yes	Workflow title

GET /openapi/workflows/

Get workflow detail

Get workflow details and workflow plan by canvas ID.

Parameters

Name	In	Type	Required	Description
canvasId	path	string	Yes	Canvas/Workflow ID

Responses

Status	Description
200	Workflow detail retrieved successfully
401	Unauthorized - invalid or missing API key
404	Workflow not found

Response Fields (200)

Name	Type	Required	Description
success	boolean	Yes	Whether the operation was successful
errCode	string	No	Error code
errMsg	string	No	Error message
traceId	string	No	Trace ID
stack	string	No	Error stack (only returned in development environment)
data	object	No	-
data.title	string	Yes	Workflow plan title
data.tasks	object[]	Yes	Workflow tasks
data.tasks[].id	string	Yes	Task ID
data.tasks[].title	string	Yes	Task title
data.tasks[].prompt	string	Yes	Task prompt/instruction
data.tasks[].toolsets	string[]	Yes	Toolsets selected for this task
data.tasks[].dependentTasks	string[]	No	Dependent task IDs
data.variables	object[]	No	Workflow variables
data.variables[].name	string	Yes	Variable name
data.variables[].variableType	enum(string | option | resource)	No	Variable type
data.variables[].required	boolean	No	Whether the variable is required
data.variables[].options	string[]	No	Variable options (only for option type)

Files

POST /openapi/files/upload

Upload files for workflow variables

Upload files and return fileKey values. Unused files are cleaned up after about 24 hours.

Request Body

Files to upload for workflow variables.

Request Body Fields

Name	Type	Required	Description
files	string(binary)[]	Yes	Files to upload

Request Body Example

{
  "files": [
    "string"
  ]
}

Responses

Status	Description
200	Files uploaded successfully
400	Invalid request parameters
401	Unauthorized - invalid or missing API key

Response Fields (200)

Name	Type	Required	Description
success	boolean	Yes	Whether the operation was successful
errCode	string	No	Error code
errMsg	string	No	Error message
traceId	string	No	Trace ID
stack	string	No	Error stack (only returned in development environment)
data	object	No	-
data.files	object[]	Yes	Uploaded files
data.files[].fileKey	string	Yes	File key
data.files[].fileName	string	Yes	File name

Copilot

POST /openapi/copilot/workflow/generate

Generate workflow via Copilot

Generate a workflow plan from a natural language prompt. If canvasId is provided, the workflow on that canvas will be overwritten and cannot be undone.

Request Body

Copilot workflow generation request.

Request Body Fields

Name	Type	Required	Description
query	string	Yes	Natural language prompt describing the desired workflow (supports multiple languages).
canvasId	string	No	Optional canvas ID to overwrite. This will replace the existing workflow and cannot be undone.
locale	string	No	Output locale. Supported: en, zh-CN, ja, zh-Hant, fr, de-DE, ko, hi, es, ru, de, it, tr, pt, vi, id, th, ar, mn, fa.

Request Body Example

{
  "query": "生成一个客户反馈分析工作流",
  "locale": "zh-CN"
}

Responses

Status	Description
200	Workflow generated successfully
400	Request failed or invalid parameters (response may include modelResponse)
401	Unauthorized - invalid or missing API key
404	Canvas not found

Response Fields (200)

Name	Type	Required	Description
success	boolean	Yes	Whether the operation was successful
errCode	string	No	Error code
errMsg	string	No	Error message
traceId	string	No	Trace ID
stack	string	No	Error stack (only returned in development environment)
data	object	No	-
data.canvasId	string	No	Canvas/Workflow ID
data.workflowPlan	object	No	-
data.workflowPlan.title	string	Yes	Workflow plan title
data.workflowPlan.tasks	object[]	Yes	Workflow tasks
data.workflowPlan.tasks[].id	string	Yes	Task ID
data.workflowPlan.tasks[].title	string	Yes	Task title
data.workflowPlan.tasks[].prompt	string	Yes	Task prompt/instruction
data.workflowPlan.tasks[].toolsets	string[]	Yes	Toolsets selected for this task
data.workflowPlan.tasks[].dependentTasks	string[]	No	Dependent task IDs
data.workflowPlan.variables	object[]	No	Workflow variables
data.workflowPlan.variables[].name	string	Yes	Variable name
data.workflowPlan.variables[].variableType	enum(string | option | resource)	No	Variable type
data.workflowPlan.variables[].required	boolean	No	Whether the variable is required
data.workflowPlan.variables[].options	string[]	No	Variable options (only for option type)

Response Fields (400)

Name	Type	Required	Description
statusCode	number	Yes	HTTP status code
message	string	Yes	Readable error message
error	string	Yes	Error type
modelResponse	string	No	Original AI response (may be empty, length-limited)

Error Codes

Common error codes for webhook and API integrations.

Error Code	HTTP Status	Message	Description
CANVAS_NOT_FOUND	404	Canvas not found	Associated canvas cannot be found.
E0000	-	An unknown error has occurred. Please try again later.	An unknown error has occurred. Please try again later.
E0001	-	Cannot connect to the server, please try again later.	Cannot connect to the server, please try again later.
E0003	-	System parameter error. Please try again later.	System parameter error. Please try again later.
E0004	-	Authorization process failed, please try again	Authorization process failed, please try again
E0005	-	Account not found, please sign up	Account not found, please sign up
E0006	-	Password incorrect, please try again	Password incorrect, please try again
E0007	-	Email already registered, please sign in or try another one	Email already registered, please sign in or try another one
E0008	-	Verification session not found or expired, please try again	Verification session not found or expired, please try again
E0009	-	Verification code is incorrect, please try again	Verification code is incorrect, please try again
E0010	-	Operation too frequent, please try again later	Operation too frequent, please try again later
E0011	-	Human verification failed, please try again	Human verification failed, please try again
E0012	-	Authentication expired, please sign in again	Authentication expired, please sign in again
E0013	-	This file type is temporarily not supported	This file type is temporarily not supported
E0014	-	Switching embedding model is not supported temporarily	Switching embedding model is not supported temporarily
E0015	-	Chat model not configured, please configure a chat model in the settings	Chat model not configured, please configure a chat model in the settings
E0016	-	Embedding model not configured, please configure an embedding model in the settings	Embedding model not configured, please configure an embedding model in the settings
E0017	-	Media provider not configured, please configure a media provider in the settings	Media provider not configured, please configure a media provider in the settings
E0018	-	Media model not configured, please configure a media model in the settings	Media model not configured, please configure a media model in the settings
E1000	-	Canvas not found, please refresh	Canvas not found, please refresh
E1002	-	Resource not found, please refresh	Resource not found, please refresh
E1003	-	Document not found, please refresh	Document not found, please refresh
E1004	-	Reference not found, please refresh	Reference not found, please refresh
E1005	-	Reference object missing, please refresh	Reference object missing, please refresh
E1006	-	Skill not found, please refresh	Skill not found, please refresh
E1007	-	Label class not found, please refresh	Label class not found, please refresh
E1008	-	Label instance not found, please refresh	Label instance not found, please refresh
E1009	-	Share content not found	Share content not found
E1011	-	Action result not found, please refresh	Action result not found, please refresh
E1012	-	Upload file not found, please try again	Upload file not found, please try again
E1013	-	Code artifact not found, please refresh	Code artifact not found, please refresh
E1014	-	Project not found, please refresh	Project not found, please refresh
E1015	-	Provider not found, please refresh	Provider not found, please refresh
E1016	-	Provider item not found, please refresh	Provider item not found, please refresh
E1017	-	MCP server not found, please refresh	MCP server not found, please refresh
E1018	-	Canvas version not found, please refresh	Canvas version not found, please refresh
E1019	-	Provider misconfiguration, please check the provider configuration	Provider misconfiguration, please check the provider configuration
E1020	-	Toolset not found, please refresh	Toolset not found, please refresh
E1021	-	Workflow execution not found, please refresh	Workflow execution not found, please refresh
E1022	-	Workflow app not found, please refresh	Workflow app not found, please refresh
E1023	-	Copilot session not found, please refresh	Copilot session not found, please refresh
E1024	-	Drive file not found, please refresh	Drive file not found, please refresh
E2001	-	Storage quota exceeded, please upgrade your subscription	Storage quota exceeded, please upgrade your subscription
E2002	-	Execution failed, credit quota insufficient, please upgrade your subscription	Execution failed, credit quota insufficient, please upgrade your subscription
E2003	-	Model not supported, please select other models	Model not supported, please select other models
E2004	-	Content is too large. Maximum length is 100k characters.	Content is too large. Maximum length is 100k characters.
E2005	-	Request payload is too large. Maximum size is 100KB.	Request payload is too large. Maximum size is 100KB.
E3001	-	Model provider error, please try again later	Model provider error, please try again later
E3002	-	Request rate limit exceeded for the model provider. Please try again later.	Request rate limit exceeded for the model provider. Please try again later.
E3003	-	Model provider timed out, please try again later	Model provider timed out, please try again later
E3004	-	Action was stopped	Action was stopped
E3005	-	Duplication is not allowed for this shared content	Duplication is not allowed for this shared content
E3006	-	File too large for direct parsing, use execute_code tool to process it	File too large for direct parsing, use execute_code tool to process it
E3007	-	The content you entered contains sensitive information. Please revise and try again.	The content you entered contains sensitive information. Please revise and try again.
E3008	-	Presigned uploads are not supported by this storage backend	Presigned uploads are not supported by this storage backend
E3009	-	The content type is not allowed for this operation	The content type is not allowed for this operation
E3010	-	The uploaded file size does not match the expected size	The uploaded file size does not match the expected size
E3011	-	The upload session has expired, please request a new presigned URL	The upload session has expired, please request a new presigned URL
E3012	-	Tool call failed	Tool call failed
E3013	-	Failed to send email	Failed to send email
INSUFFICIENT_CREDITS	402	Insufficient credits	Insufficient credits for this operation.
INVALID_REQUEST_BODY	400	Invalid request body	Request body format is invalid.
WEBHOOK_DISABLED	403	Webhook disabled	Webhook is disabled and cannot be triggered.
WEBHOOK_NOT_FOUND	404	Webhook not found	Webhook does not exist or has been deleted.
WEBHOOK_RATE_LIMITED	429	Webhook rate limited	Request rate exceeds the limit.
